  • LS-2149-LT

Description

  • Integrated compact DPSS laser with build-in tunable Ti:Sa laser
  • Automated wavelength switching and tuning
  • TEM00 mode beam profile
  • Repetition rate up to 1kHz
  • High pulse energy, up to 1.4 mJ
  • PC control via RS232
  • External TTL triggering
  • Second harmonic of Ti:Sa and optical fiber output optionally

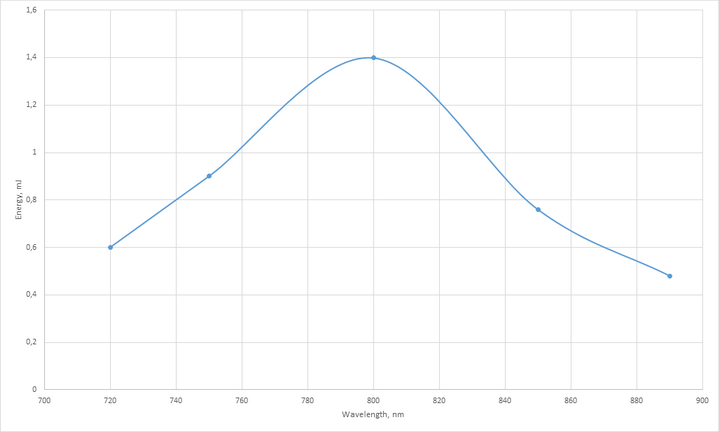

Pic.1. Tuning curve

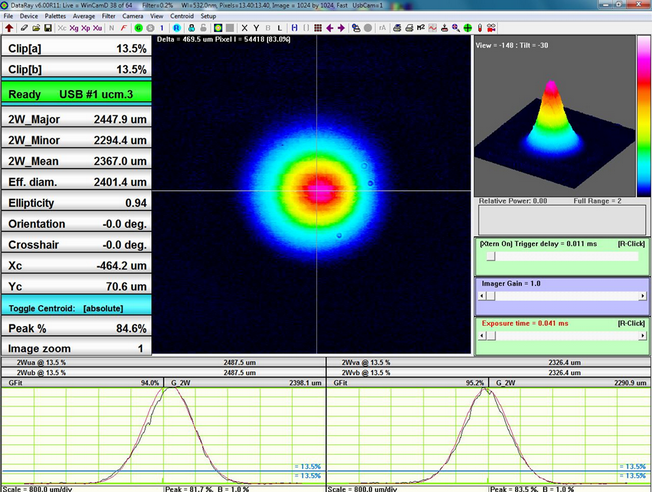

Pic.2. Output beam profile, far field

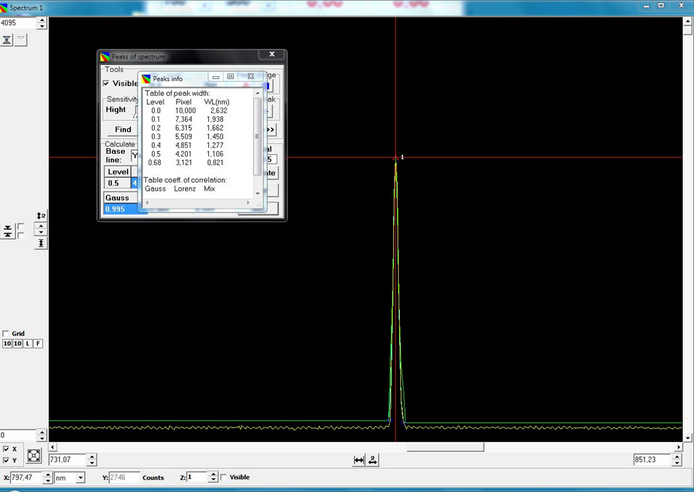

Pic.3. Line width at 800 nm



Specification

LS-2149-LT
Energy, mJ 710-900 nm up to 1.4
Wavelength, nm Ti:Sa 710-900
Nd:YAG 1064, 532
Pulse duration (FWHM), ns 25-35
Pulse repetition rate, Hz up to 1000
Polarization Horizontal
Line Width, nm ≤1.2
Beam divergence (Θ 0,86), mrad ≤1.6
Beam diameter, nm 0.7
Jitter, ns ±1.5
Energy stability (StdDev), % 2.5
Size LxWxH, mm Laser Head 620x360x153
Power Supply 391x364x192
Cooling System 391x364x280
Remote control 105x175
Power requirements Single Phase 220 ±20V, 50-60 Hz, 10А

LS-2149-LT

High repetition rate DPSS Nd:YAG laser with build-in Al2O3:Ti3+

  • High repetition rate DPSS Nd:YAG laser with build-in Al2O3:Ti3+

  • Product Code: LS-2149-LT
  • Availability: In Stock
